EP-M650 Metal 3D Metal Printing Machine
Additive Manufacturing Machines
Using MPBF™ (Metal Powder Bed Fusion) technology, EP-M650 is using a large building envelope and 4/6/8 laser systems to ensure a high efficiency production. The precise positioning and innovative area splicing control technology offers uniformity and stability throughout the whole printing phase.
The system can operate with various metal powders such as titanium, aluminum and nickel alloy, maraging steel, stainless steel, cobalt chrome and other materials. It is suitable for the direct manufacturing of large-size, high precision and high-per- formance parts in the aerospace, aviation and automotive industry,etc.
EP-M650 Metal 3D Printer Features
High Effciency & Productivity
- Printing of mass-individualized parts in the 340 Liter (650 x 650 x 800 mm) build chamber.

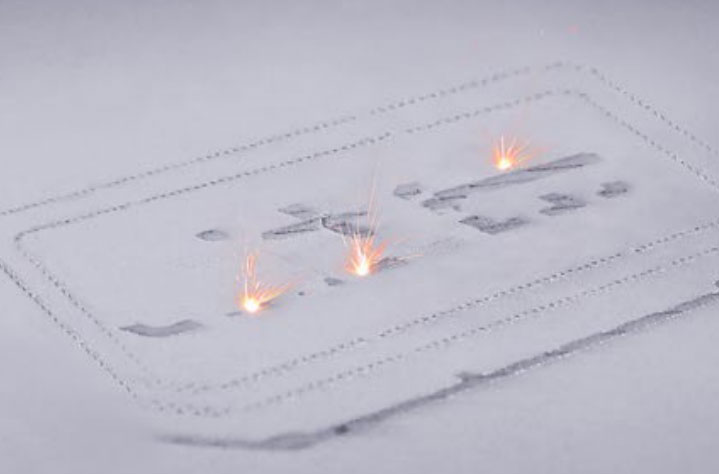

- Four lasers are printing simultaneously with up to 320 cm³/h, which increased efficiency by 3.5 times compared to a single laser system.
- Printing large layer thicknesses of more than 60 um is possible.
Stable Quality, Good Consistency
- High parts accuracy in the overlap area of 0.1 mm. The deviation of mechanical properties compared to a single laser system is lower than 3%.
- Optimized design the air flow ensures the effective removal of dust and splatter as well as a unifrom parts quality in the whole print bed.
- The strict calibration ensures the consistency between parts and batches.
Humanized Design, High Automation Degree

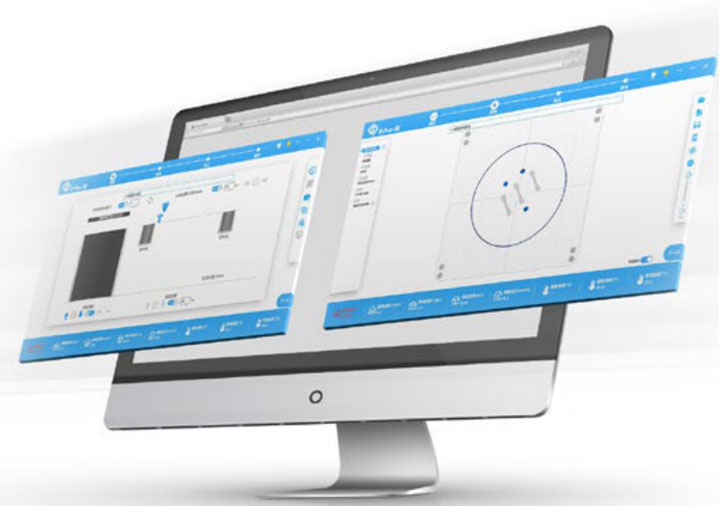

- Friendly user interface with fully automatic one-click printing function.
- The build job information is displayed in real time with traceable printing parameters and a detailed printing report.
- The one-piece take out function ensures a high automation and low downtime, due to an automatic movement of the building cylinder into the cleaning module after the print is finished.
Real Time Monitoring, High Security
- Safety design, prevent misoperation, electric shock, fire, waste and pollution.
- Outstanding overall sealing performance, use and recovery of powder in a closed state.
- Environment and gas source state Real-Time Monitoring, safe and reliable.
Perfect After-sales Service
- We support our customers with technical consulting services, including data evaluation, and application development.
- Assisting our customers in new material parameter development. Existing parameter packages are provided free of charge.
- Free equipment installation and maintenance during the warranty period, full set of technical training is provided.
What can Eplus3D EP-M650 3D metal printing machine print?

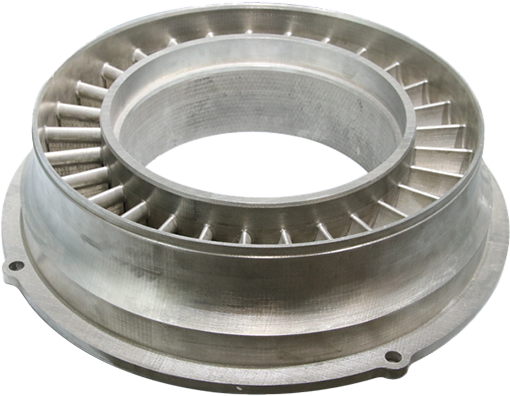

Turbine
Machine: EP-M650 (Quad Laser)
Process: Metal Powder Bed Fusion (MPBF)
Machine: IN718
Size: 620 x 150mm
Printing Time: 240h
Application: Aerospace

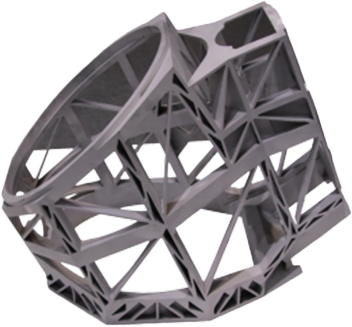

Frame
Machine: EP-M650 (Quad Laser)
Process: Metal Powder Bed Fusion (MPBF)
Material: Aluminium alloy
Size: 470 x 400 x 499mm
Printing Time: 176h
Application: Aerospace

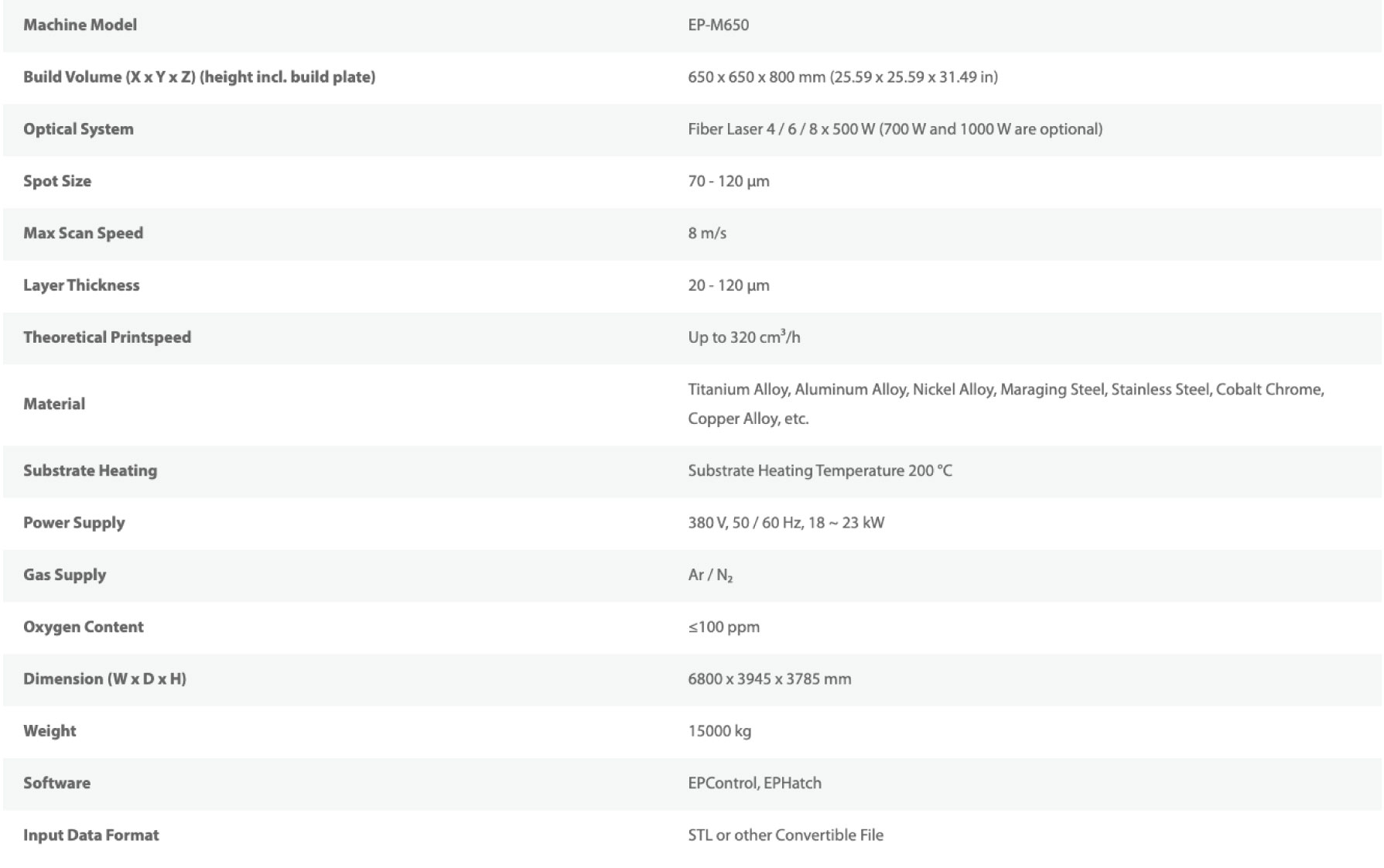

Technical Specifications
