EP-M1250 Metal 3D Printer
Additive Manufacturing Machines
Using MPBF™ (Metal Powder Bed Fusion) technology, EP-M1250 is using a larger building envelope and nine-laser system to ensure a high efficiency production. The precise positioning and innovative area splicing control technology offers uniformity and stability throughout the whole printing phase.
The system can operate with various metal powders such as titanium, aluminum and nickel alloy, maraging steel, stainless steel, cobalt chrome and other materials. It is suitable for the direct manufacturing of large size, high-precision and high-per- formance parts in the aerospace, aviation, automotive and machinery industry.
EP-M1250 Metal 3D Printer Features
High Effciency & Productivity
- Printing of mass-individualized parts in the 2136 Liter (1250 x 1250 x 1350 mm ) build chamber.
- Each of the nine lasers covers its own area for maximum efficiency.
- Bi-directional powder re-coating method leads to reduced re-coating time.
High Quality
- Excellent high beam quality (M2≤1.1).
- Printed parts’ density > 99.9%, deviation in parts’ mechanical properties < 5%.
- The optimized gas flow design ensures efficient removal of smoke and splashes as well as achievement of uniform and consistent full size printing.
- The strict calibration ensures the consistency between parts and batches.

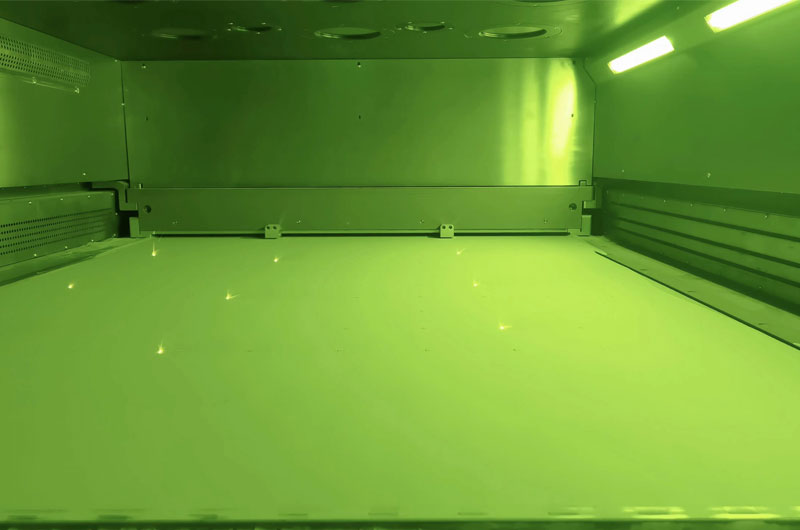

Reliable & Stable
- Tightly sealed build chamber maintains oxygen concentration < 100 ppm and a stable pressure during printing.
- Environment and gas source state real-time monitoring, safe and reliable.

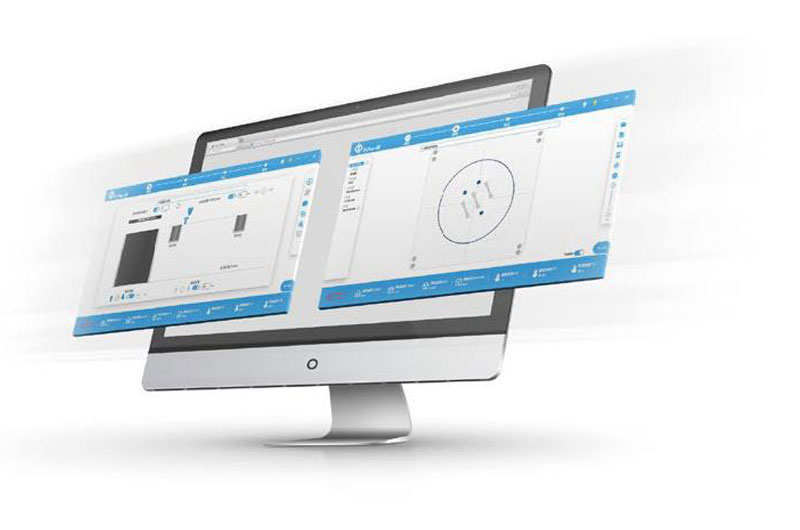

Easy Operation
- Friendly user interface with fully automatic one-click printing function.
- Two-stage filtration, which can use blow back function to remove the fume, equipped with permanent filter element.
- The build job information is displayed in real time with traceable printing parameters report.
Perfect After-sales Service
- We support our customers with technical consulting services, including data evaluation, application development.
- Assisting our customers in new material parameter development, existing parameter packages are provided free of charge.
- Free equipment installation and maintenance during warranty period, full set of technical training is provided.
What can EP-M1250 print?
ROCKET ENGINE NOZZLE EXPANSION SECTION
Machine: EP-M1250
Process: Metal Powder Bed Fusion (MPBF)
Material: Stainless steel
Size: 1050 x 160mm
Printing time: 160H
Application: Aerospace
Rocket Compartment
Machine: EP-M1250
Process: Metal Powder Bed Fusion (MPBF)
Material: In718
Size: 630 x 630 x 1100 mm
Application: Aerospace

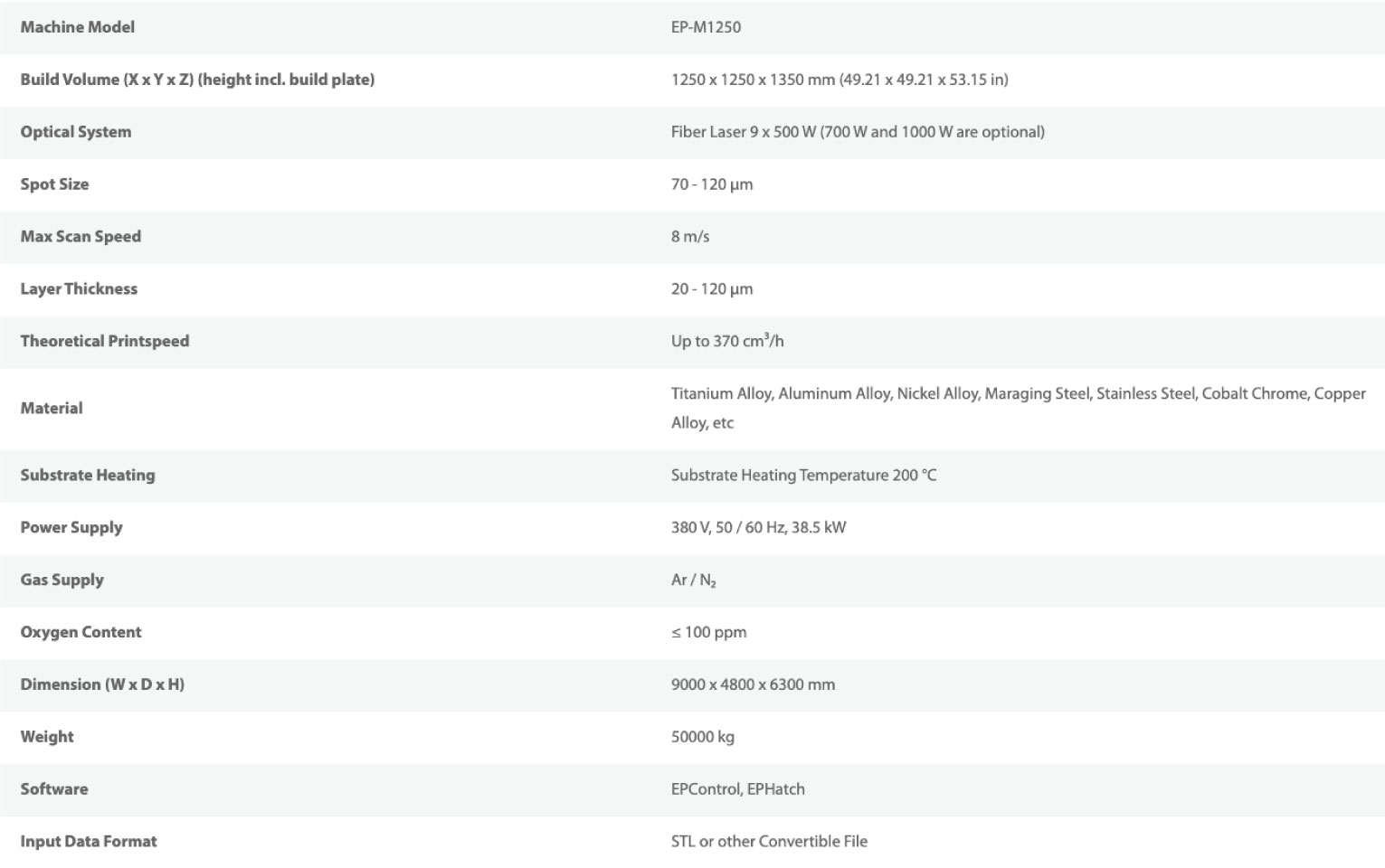

Technical Specifications
