1+7+34 Laser Line+ NIR
Creality Sermoon S1
Versatile to the core, accurate evermore
01 Multi-Light Versatility
Why Choose the Sermoon S1
1 Single Laser Line
Accurately capture 3D data of deep holes and hard-to-reach area
7 Parallel Blue Laser Lines
Accurately captures fine surface details of complex objects with single-line precision and up to 0.1 mm resolution
34 Cross Laser Lines
Quickly covers medium to large objects, greatly improving work efficiency.
02 High Accuracy
Why Choose the Sermoon S1
Sermoon S1 delivers metrology-grade precision,
making it ideal for high-accuracy,
non-destructive inspection across industries.
Scanning Accuracy
0.02mm
Volumetric Accuracy
0.02 mm + 0.08mm/m
03 High Efficiency
Why Choose the Sermoon S1
90FPS High-Speed Scanning
Achieve data acquisition speeds of up to 1,428,000 points per
second and a maximum scanning frame rate of 90 frames per second.
Parallel lines/single line, up to 90fps
Cross lines up to 70fps
04 Versatile Size Scanning
Why Choose the Sermoon S1
Scanning Range 5 mm³ – 4000 mm³
With a hybrid system combining blue laser lines and infrared structured light,
the Sermoon S1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as
large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts,
figurines, or even the human body.
05 User-Friendly Design
Why Choose the Sermoon S1
Supports Expandable Scan Bridge
Switch to wireless scanning for unrestricted mobility.

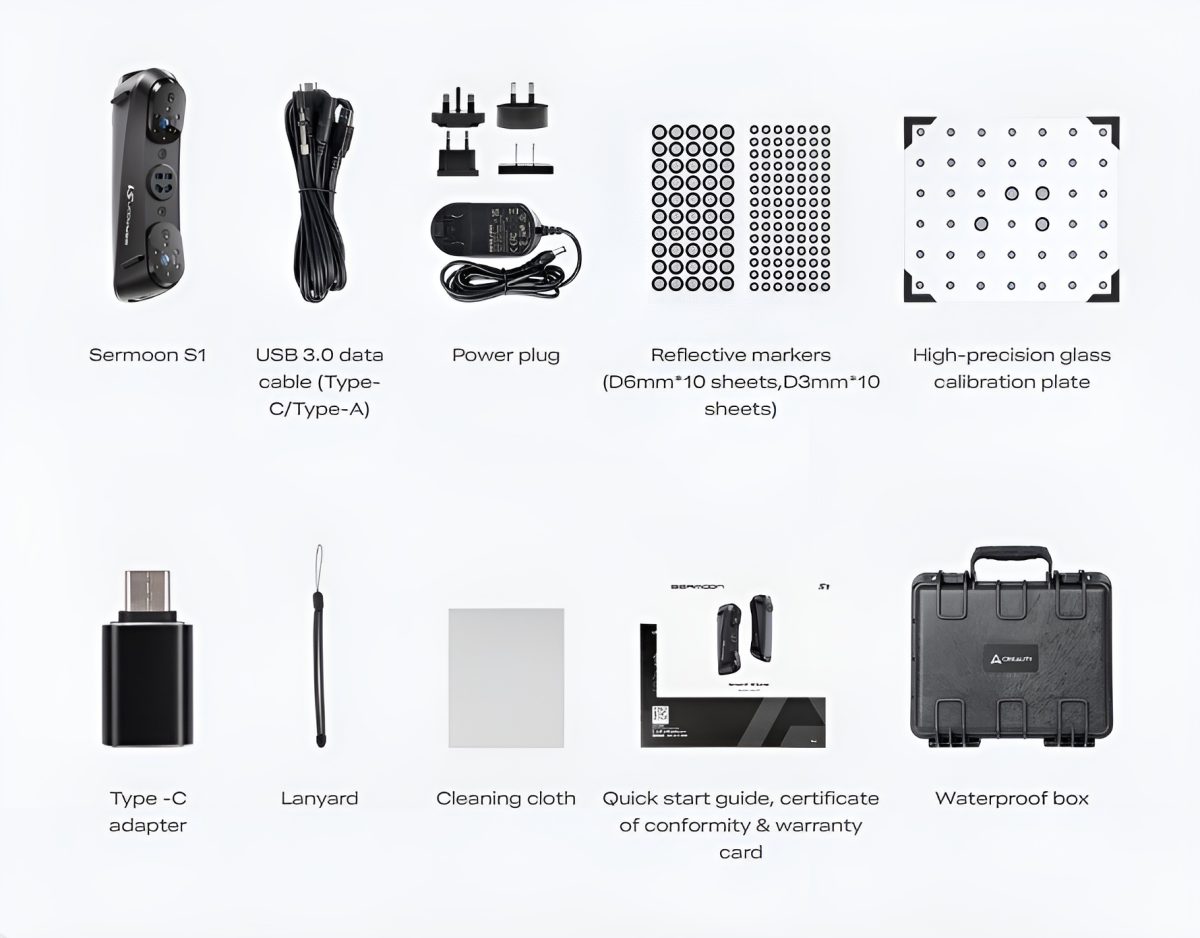

What is in the box?
