Casting (Master Pattern)
Combine conventional casting method with digital workflow to cope with the fast changing competitive market
Master Pattern for Silicon Molding
Master Pattern
Lead time is the key to success and keep up to customer requirement
How Sla 3d Printer For Footware Casting
How SLA 3D Printer (KINGS 3035 Pro) Solutions able to help in shorten the process of Footwear Casting Application.
Lost Wax Pattern
3D System Lost Wax 3D Printer for Jewelry
The ProJet MJP 2500W and ProJet MJP 3600W 3D printers by 3D Systems print in 100% real wax materials to deliver consistent, high resolution patterns for metal casting precision, accuracy and efficiency.

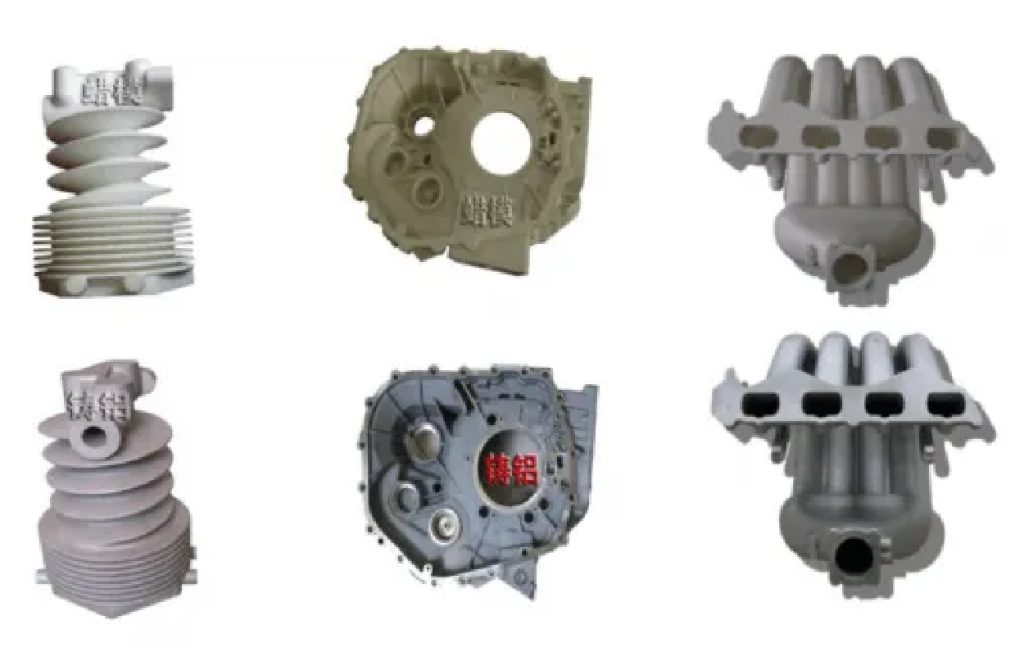

Wax Casting For Industrial Part
Wax Casting part by Shining 3D Industrial 3D Printer – EP-C5050 & EP-C7250
Sand Core (Sand Casting)

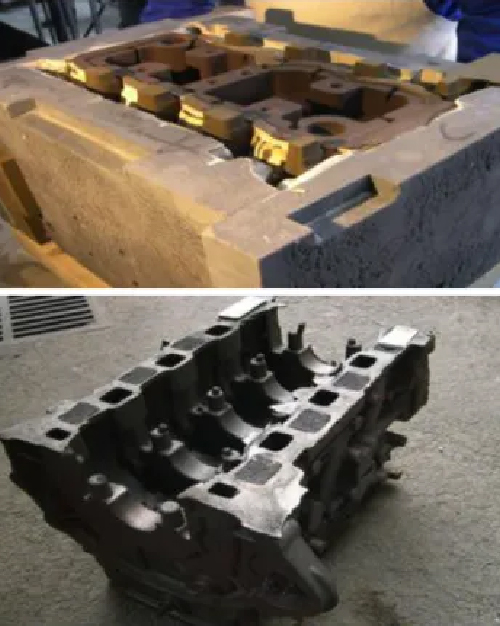

Cast Car Engine Block
Sand Casting part by Shining 3D Industrial 3D Printer – EP-C5050 & EP-C7250
Mould : All the cores and external molds are casted with SLS printed part
Actual Metal Material : HT250
Size : 415 x 260 x 367 mm
Total Process Time : 2 pcs @ 21 days
Application : Simulation test and test run

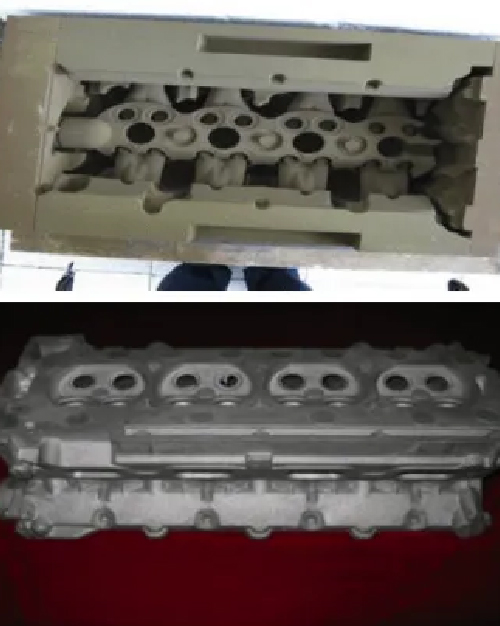

Cast Car Engine Block
Sand Casting part by Shining 3D Industrial 3D Printer – EP-C5050 & EP-C7250
Mould : All the cores and external molds are casted with SLS printed part
Actual Metal Material : AC4B, T6
Size : 390 x 245 x 176 mm
Total Process Time : 1st Pc @ 10 days, 2 pieces @ 15 days, 6 pieces @ 25 days
Application : Simulation test and test run

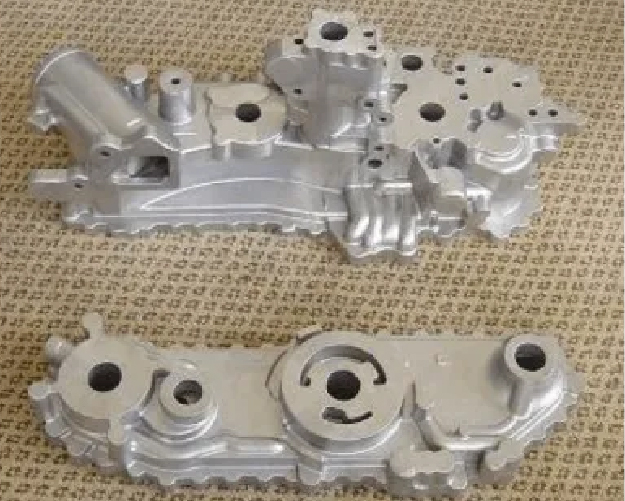

Cast Helicopter Cylinder Cover
Sand Casting part by Shining 3D Industrial 3D Printer – EP-C5050 & EP-C7250
Mould : All the cores casted with SLS printed part. External mold is sand milled
Actual Metal Material : Zl114, T6, First Class Casting
Size : 536 x 245 x 276 mm
Total Process Time : 13 pcs, 15-25 days to complete
Application : Chill is added topically, casted with gravity
